Compact the hard work of cutting large metal pieces into a smooth, reliable workflow. Shuliy’s gantry shears convert bulky scrap — car bodies, beams, pipe bundles and plate — into uniform, furnace-ready cuts with minimal labour and consistent throughput.
What the Shuliy Gantry Shear Does

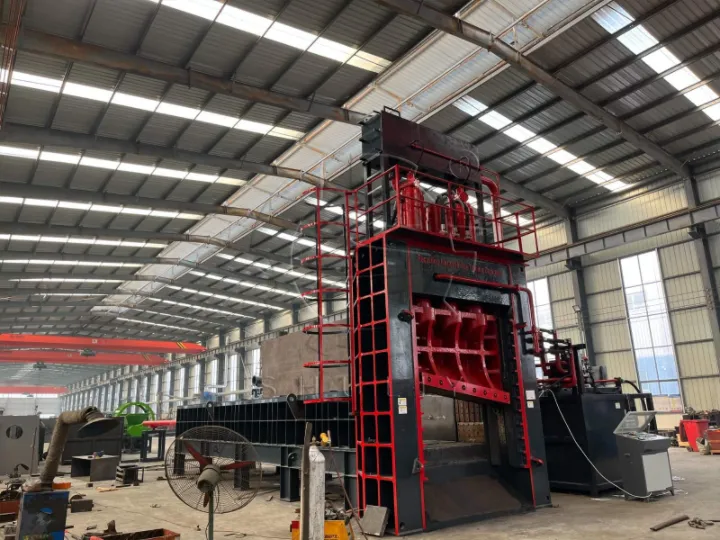

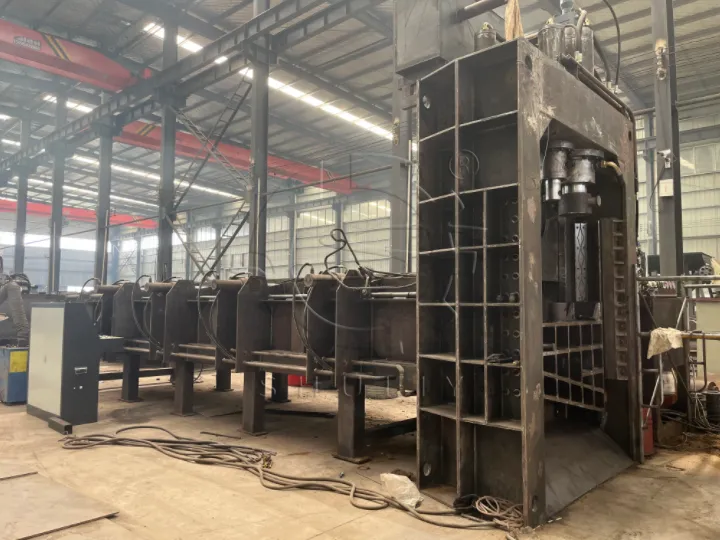

The gantry shear is a high-force hydraulic cutter built on a rigid gantry frame. Materials are loaded into a compression box, pressed into position and vertically sheared by a hardened blade. The result: clean, repeatable cuts without flame or plasma, safer handling, and material sized for transport or melting.
Typical uses:
- Recycling yards turning mixed scrap into furnace feed
- Dismantling yards cutting car shells and structural members
- Steel mills and foundries preparing charge material
- Shipbreaking and demolition sites resizing plates and beams
Why Factories Choose A Gantry Shear
- Reliable output: Large feed box and hydraulic compression let you process irregular loads without extra sorting.
- Lower operating cost: Hydraulic drive reduces energy spikes and reduces dependence on manual torch cutting.
- Improved safety: Closed-box shearing greatly reduces sparks and hot work hazards.
- Better furnace performance: Uniform pieces improve melt efficiency and reduce handling time.
Representative Shuliy Configurations — Parameter Table
The table below lists commonly offered configurations to help select the right class of machine. These figures are typical reference values; Shuliy offers customization to match site layout, power supply and scrap types. Request a datasheet for final, export-ready specifications.
| Model (typical) | Max Shearing Force | Feed Box (L*W*H) | Blade / Cutting Width | Approx. Main Motor Power | Typical Cycle Rate |
|---|---|---|---|---|---|
| 630-class | 630 tonnes | 6000*1500*800 mm | ~1600 mm | ~130 kW | ~3 cuts/min |
| 800-class | 800 tonnes | 8000*1800*1200 mm | ~1800 mm | ~180 kW | 3-5 cuts/min |
| 1500-class | 1500 tonnes | 8000*2400*1100 mm | ~2500 mm | ~290 kW | ~3 cuts/min |
| 2000-class | 2000 tonnes | 8000*2100*900 mm | ~2200 mm | ~425 kW | ~3 cuts/min |
Notes:
- Cycle rate varies with scrap geometry, feeding method and automation level.
- Blade material typically uses high-hardness alloy steel for long life; blade change is straightforward for uptime.
- Final machine weight, dimensions and power draw depend on chosen options and export configuration.
How to Pick the Right Model
- Estimate daily throughput (tons/day). Match capacity class so the shear isn’t a production bottleneck.
- Identify dominant scrap types: car shells, structural beams, plates or bundled pipe — each affects feeding and box sizing.
- Decide automation level: manual, semi-automatic or PLC/remote operation for unattended cycles.
- Verify site requirements: power supply, pit/foundation needs, overhead clearance and transport access.
- Plan spare parts & service: blade sets, hydraulic seals and filters should be stocked or quickly available.
If in doubt, size up: a higher tonnage shear handles thicker and more irregular pieces and reduces rework.
Operation & Maintenance Essentials
- Replace hydraulic filters and monitor oil condition on a routine schedule.
- Inspect and index blades when quality drops; keep an extra blade set on site.
- Lubricate guide rails and sliding surfaces to avoid binding.
- Train operators on safe loading practice and emergency stop procedures.
- Keep a short preventive-maintenance checklist to prevent unplanned downtime.
Installation & After-sales
Shuliy offers export packaging, onsite installation support and spare-parts supply for international customers. For industrial installations, foundation design and electrical supply should be confirmed before shipment. Standard export support includes documentation, recommended spare parts list and operator training.
Commercial & Delivery Guide
- Machines are available in multiple classes and can be tailored for feed box size, blade length and automation.
- Price varies by model, options and delivery terms (FOB/CIF). Request a formal quotation with your scrap profile and target daily capacity.
- Lead times depend on customization level — confirm current delivery estimates when ordering.
Conclusão
Provide your scrap profile (material types, average piece size, daily tonnage, available power and site dimensions) to receive a tailored recommendation and an official quotation with lead time. Include any export constraints so the package is prepared for fast customs clearance. We also provide metal baler machine for recycling.
